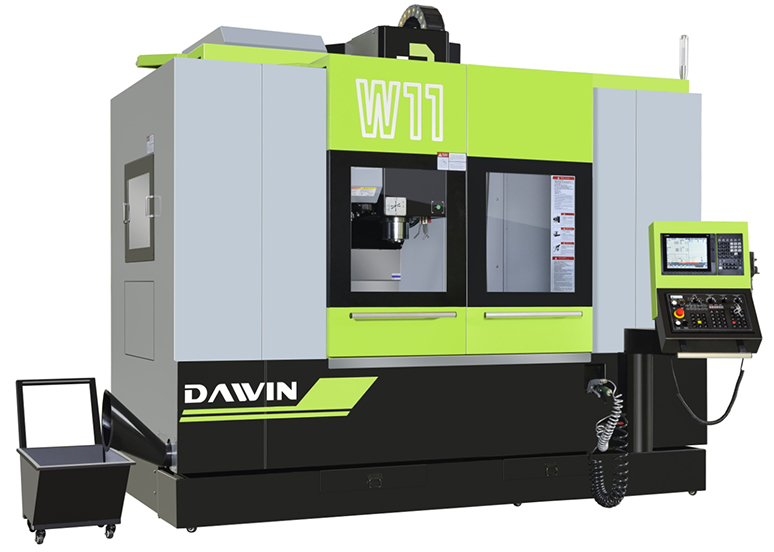

The CNC machining center has an automatic tool changing function,which mainly relies on its equipped tool magazine system and automatic tool changing device(ATC).In practical applications,machining centers can automatically switch the required tools between different processes according to program settings without manual intervention,thereby improving continuous machining capacity and production efficiency.The common types of tool magazines include bucket hat style and disc style.The bucket hat style has a simple structure and is suitable for models with relatively few tools,while the disc style has a faster response speed and is suitable for scenarios with high requirements for tool changing efficiency.

The process of automatic tool change usually includes several steps:the spindle returns to the tool change position,the tool magazine rotates to select the specified tool position,the robotic arm removes the currently used tool from the spindle,and then loads the new tool into the spindle.After completion,the tool magazine resets and prepares for the next tool change cycle.The entire process is completed by the PLC control system and highly linked with the CNC system program.In the process of tool changing,to ensure positioning accuracy and clamping stability,the spindle taper hole and tool holder usually use standard interfaces such as BT,CAT,HSK,etc.These standardized designs make tool installation more reliable and facilitate later maintenance and replacement.

The number of tools supported by different models of machining centers varies,ranging from 12,24 to more,depending on the tool magazine capacity and machine control system configuration.For parts with complex processes or frequent tool switching,the automatic tool changing function of the machining center can effectively avoid waiting time for downtime and tool changing,while reducing the risk of errors or collisions that may arise from manual operations.

In terms of production line organization,the automatic tool changing function also provides a technical foundation for flexible manufacturing and batch diversified production,especially widely used in fields such as mold processing,automotive parts,and precision hardware.It should be noted that the automatic tool changing system is a precision component.During use,the status of the tool magazine,the coordination of the robotic arm movements,and the cleanliness of the spindle taper hole should be regularly checked to maintain its normal operation.Equipment operators should also be familiar with the logic of tool changing and troubleshooting methods to avoid affecting production rhythm due to issues such as tool jamming and incorrect tool numbers.

Overall,machining centers have strong tool management capabilities and automation levels,and can achieve continuous,efficient,and accurate multi process machining in daily production,which is one of the important functions in modern manufacturing equipment systems.
